American Made Deep Cycle Batteries

We have compiled a list of U.S. deep cycle battery manufacturers & brands, which includes 3 companies who produce some of the best lithium and lead acid deep cycle batteries for marine, rv, solar & wind off grid applications and more.

We've provided some basic information about the companies, and affiliate links to retailers where you can get the latest prices, shipping costs, customer reviews, special offers & more, where available, and also created an easy to understand graph showing battery energy under differing demands & temperatures and also battery capacity after various cycles.

Battle Born

Battle Born Batteries harnesses the power of lithium iron phosphate (LiFePO4) to bring you the most efficient, stable, and powerful lithium-ion battery on the market. Whether you are an RV, marine, or off-grid enthusiast, their batteries are built to help you get out there and stay out there.

50
Their batteries are assembled in Reno, Nevada.

Battle Born BB10012

Battle Born Meet the 100 Ah 12 V LiFePO4 Deep Cycle battery, the pinnacle of deep cycle lithium-ion battery technology. This 100 amp hour, 12 volt battery weighs only 31 pounds and is capable of providing you power and relief from battery anxiety. These batteries are run in various systems, including marine, RV, van, and off-grid.
Amazon
Due to the nature and type of chemistry, all batteries suffer from varying degrees of internal resistance, which restricts the flow of energy into and out of a battery. Battery design & construction, age and temperature also effect that energy flow.

The following graphs show this battery's flow charactaristics and were derived from manufacture supplied sources and other sources, and are theoretical calculations meant for evaluation & comparison purposes only. You should expect some variances due to a wide range of application & design variabilities encountered in real world use, compared to a controlled testing environment.

Run Time Minutes

Amount of time this battery can deliver a continous current until the battery reaches 100% DoD, or it drops to 8.0 volts.

The voltage for a fully charged lithium iron phosphate battery is +13.0V. A 100Amp (C/1) draw is the equivalent of +1300 watts of energy at 0% DoD. This battery will still deliver about 1260 watts at 80% DoD @ 77°F, but will have dropped to 800 watts at 100% DoD.

25 Amps240 minutes @ 77°F212 minutes @ 32°F152 minutes @ -05°F50 Amps120 minutes @ 77°F106 minutes @ 32°F76 min @ -05°F100 Amps60 m @ 77°F53 m @ 32°F38 -05°F

Energy vs Temperature

Amount of energy this battery can deliver at various temperatures and depths of discharge.

Example: At 40% depth of discharge and 77°F this battery can output 1305 watts.

Energy units reflect a rate of discharge of C/1, or 100 amps.

40% DoD1305 watts @ 77°F1250 watts @ 32°F1125 watts @ -05°F60% DoD1300 watts @ 77°F1230 watts @ 32°F1025 watts @ -05°F80% DoD1260 watts @ 77°F1185 watts @ 32°F0@ -05°F (8.0v cut-off achieved @ 68% DoD)

Cycles vs Capacity

This graphs gives the remaing capacity at various cycles and depths of discharge.

Example: After 3000 cycles to a depth of 80% discharged, the overall capacity was reduced from 100AH to 75AH, or to 75% of the batterys rated capacity when it was new.

All cycles reflect a rate of discharge of C/2, or 50 amps.

50% DoD2000 cycles = 92%3000 cycles = 87%5000 cycles = 77%80% DoD2000 cycles = 83%3000 cycles = 75%5000 cycles = 58%100% DoD2000 cycles = 67%3000 cycles = 50%5000 25%

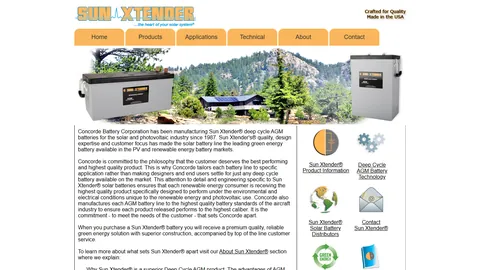

SunXtender

As a family owned and operated US manufacturing facility, they take pride in all of their products. Quality materials and craftsmanship put them at the top of the battery market. SunXtender is a powerful name in the battery industry with world class performance and customer service. You can rely on their industry proven durability to get the most out of your Solar System.

75
Sunxtenderr batteries are assembled in California.

SunXtender PVX 1040T

SunXtender Sun Xtender® AGM batteries have been specifically designed for true deep cycle, long service life capability in adverse temperature and handling conditions. Concorde uses extra thick positive plates, high density paste, thick AGM separator layers encased within a microporous polyethylene envelope, thick walled containers with epoxy-sealed covers.
Due to the nature and type of chemistry, all batteries suffer from varying degrees of internal resistance, which restricts the flow of energy into and out of a battery. Battery design & construction, age and temperature also effect that energy flow.

The following graphs show this battery's flow charactaristics and were derived from manufacture supplied sources and other sources, and are theoretical calculations meant for evaluation & comparison purposes only. You should expect some variances due to a wide range of application & design variabilities encountered in real world use, compared to a controlled testing environment.

Run Time Minutes

Amount of time this battery can deliver a continuous current until the battery reaches 100% DoD, or drops to 10.5 volts.

The voltage for a fully charged AGM lead acid battery is ˜12.7V. A 100Amp (C/1) draw is the equivalent of ˜1270 watts of energy at 0% DoD. This battery will still deliver about 1138 watts at 80% DoD @ 77°F, but will have dropped to 1050 watts at 100% DoD.

25 Amps186 minutes @ 77°F143 minutes @ 32°F70 minutes @ -05°F50 Amps63 minutes @ 77°F42 m @ 32°F19min @ -05°F100 Amps30 min@ 77°F13min @ 32°F-8 min @ -05°F

Load Voltage vs DOD

Battery voltage at various loads and depths of discharge (temperature compensated).

Examples: While under a C/2 discharge, when the voltage drops to 11.97v @77°F, then the battery is approximatly 50% DOD.

To cut off power @80% battery DOD & 77°F, the voltage setting will be 11.59v under a light 5amp rate, or 11.38v under a heavy 100amp rate.

30% DOD Dave Hurley C/1 rate=(12.07 v@ 77°F)(11.88 v@ 32°F)(11.74 v@ -05°F) Dave Hurley C/2 rate=(12.19 v@ 77°F)(12.0 v@ 32°F)(11.86 v@ -05°F) Dave Hurley C/20 rate=(12.39 v@ 77°F)(12.20 v@ 32°F)(12.06 v@ -05°F)
50% DOD Dave Hurley C/1 rate=(11.83 v@ 77°F)(11.64 v@ 32°F)(11.5 v@ -05°F) Dave Hurley C/2 rate=(11.97 v@ 77°F)(11.78 v@ 32°F)(11.64 v@ -05°F) Dave Hurley C/20 rate=(12.13 v@ 77°F)(11.94 v@ 32°F)(11.80 v@ -05°F)
80% DOD Dave Hurley C/1 rate=(11.38 v@ 77°F)(11.19 v@ 32°F)(11.05 v@ -05°F) Dave Hurley C/2 rate=(11.50 v@ 77°F)(11.31 v@ 32°F)(11.17 v@ -05°F) Dave Hurley C/20 rate=(11.59 v@ 77°F)(11.40 v@ 32°F)(11.26 v@ -05°F)

Cycles vs Capacity

This graphs gives the remaining battery capacity at various cycles and depths of discharge.

Example: After 500 cycles to a depth of 80% discharged, the overall capacity was reduced from 100AH to 81AH, or to 81% of the battery's rated capacity from when it was new.

All cycles reflect a low rate of discharge of C/20, or about 5 amps.

50% DoD200 cycles = 96%500 cycles = 90%1500 cycles = 70%80% DoD200 cycles = 92%500 cycles = 81%1500 cycles = 42%100% DoD200 cycles = 89%500 cycles = 72%1500cycles = 15%

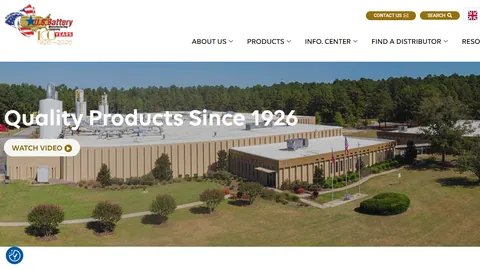

U.S. Battery

U.S. Battery Mfg. is the industry leader in manufacturing deep cycle batteries designed for: solar power, renewable energy, wind power, energy storage, golf car batteries, marine & RV batteries, scissor lift batteries, sweeper batteries, scrubber batteries, automotive, and most other uses for deep cycle batteries.

75
US Battery has facilities in California and Georgia.

U.S. Battery 27DC XC2

U.S. Battery You can edit this category description by selecting "Settings for the current project" in the Link Manager main window. Then switch to the "Link Manager > Category List" panel, select the category name and click the Edit button.
Due to the nature and type of chemistry, all batteries suffer from varying degrees of internal resistance, which restricts the flow of energy into and out of a battery. Battery design & construction, age and temperature also effect that energy flow.

The following graphs show this battery's flow charactaristics and were derived from manufacture supplied sources and other sources, and are theoretical calculations meant for evaluation & comparison purposes only. You should expect some variances due to a wide range of application & design variabilities encountered in real world use, compared to a controlled testing environment.

Run Time Minutes

Amount of time this battery can deliver a continuous current until the battery reaches 100% DOD.

The voltage for this fully charged flooded lead acid is 12.24V. A 100Amp (C/1) draw is the equivalent of +1300 watts of energy at 0% DoD. This battery will still deliver about 1166 watts at 80% DOD @ 77°F, but will have dropped to 1083 watts at 100% DOD.

Dave Hurley 25 Amps 205 minutes @ 77°F 146 minutes @ 32°F 72 minutes @ -05°F
Dave Hurley 50 Amps 86 minutes @ 77°F 62 m @ 32°F 30 -05°F
Dave Hurley 100 Amps 35 m35 25 m25 -12 m @ -05°F

Cycles vs Capacity

This graphs gives the remaining battery capacity at various cycles and depths of discharge.

Example: After 500 cycles to a depth of 80% discharged, the overall capacity was reduced from 105AH to 89AH, or to 85% of the battery's rated capacity from when it was new.

All cycles reflect a low rate of discharge of C/20, or about 5 amps.

30% DoD200 cycles ˜ 104%500 cycles ˜ 103%1500 cycles ˜ 90%50% DoD200 cycles ˜ 103%500 cycles ˜ 98%1500 cycles ˜ 55%80% DoD200 cycles ˜ 102%500 cycles ˜ 85%0% battery capacity @ ˜ 700 cycles.

Cut-Off Voltage vs DoD

Battery voltage at various loads and depths of discharge. (temperature compensated)

Example: While under a C/2 discharge, when the voltage drops to 10.5 then the battery is at ˜80% DoD.

Note: C/1 = 100amps, C/2 = 50amps & C/20 = 5amps.

30% DoDC/1 Rate ˜11.71v @ 77°FC/2 Rate ˜11.76v @ 77°FC/20 Rate ˜11.81v @ 77°F50% DoDC/1 Rate ˜11.35v @ 77°FC/2 Rate ˜11.40v @ 77°FC/20 Rate ˜11.45v @ 77°F80% DoDC/1 Rate ˜10.2v @ 77°FC/2 Rate ˜10.5v @ 77°FC/20 Rate ˜10.8v @ 77°F
